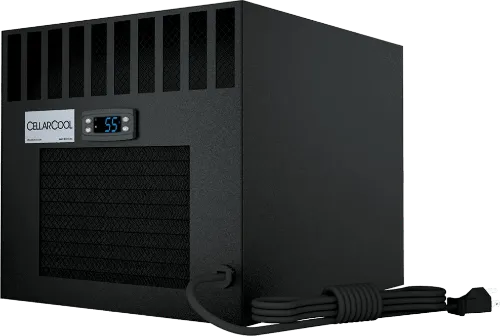

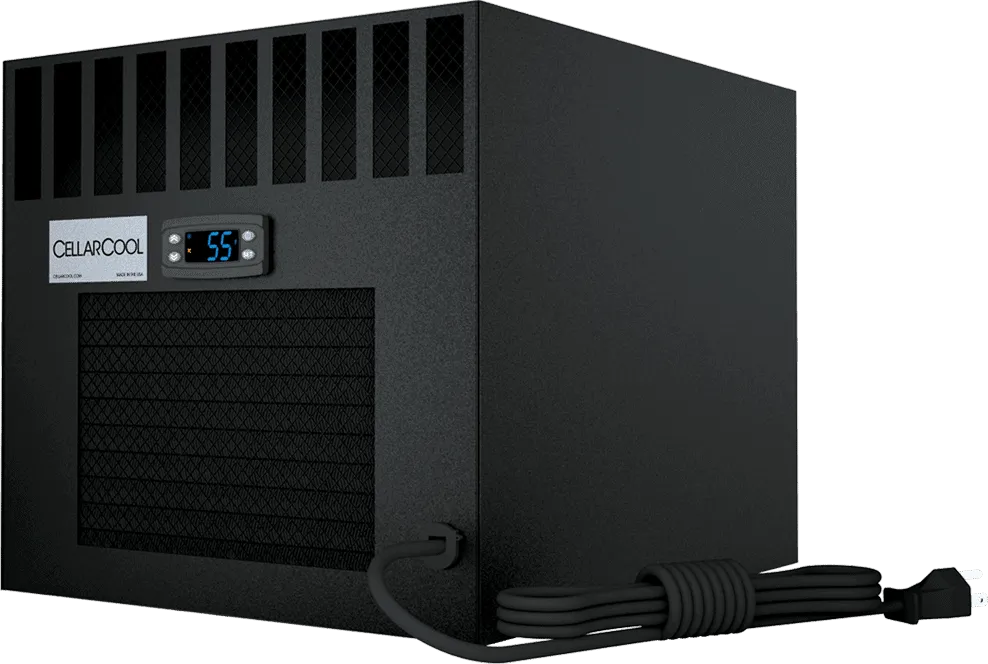

CellarCool CX3300 Through-the-Wall Wine Cellar Cooling System
The CX Standard –Thru-Wall System has a dynamic air flow allowing for excellent circulation of air throughout the cellar, "best-in-class” 30 degree temperature variance, and the digital controller with system safety management and anti-frost features.
Description:
Through the Wall Wine Cellar Cooling Unit. Designed for cooling up to 650 cu. ft.
The CX Standard –Thru-Wall System has a dynamic air flow allowing for excellent circulation of air throughout the cellar,“best-in-class” 30 degaree temperature variance, and the digital controller with system safety management and anti-frost features. Furthermore, these units are a direct replacement for the Breezaire and Wine Mate Thru-Wall units.
Features:
- Dimensions: 21.63" D x 14.25" W x 19.75" H
- Weight (lbs): 65
- AMPS (running): 4.9
- 3/8" condensate drain line required
Please note the CX2200 comes with the drain line in the rear of the unit. It will be visible from the adjacent room.
Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit. Thermal load may be affected by glass in the cellar, room positioning or other factors. Please let a Rosehill Wine Cellar rep make some suggestions for you if needed.
- Made in the USA
- Dynamic Airflow
- 30°F Temperature Variance - *Best-in-class*
- Digital Controller with SSM (System Safety Management) and Anti-Frost
- Through-the-Wall Installation with mounting brackets
- Heat Exchange Condensate Management System
- Power cord located inside or outside the wine cellar - please specify what's needed.
- Provides precise measurement of air temperature
- Drain line is positioned on warm side of wine cellar
- Vibration-Free Operation
- Low Maintenance
|
Model
|
2200
|
3300
|
4400
|
|
|
Cellar Size
|
300
|
650
|
1000
|
|
|
BTUh (w/85°F air entering the condenser coil)
|
1453
|
2049
|
2253
|
|
|
Dimensions
|
16.38"D x 14.25"W x 13.25"H (CX2200)
21.63"D x 14.25"W x 19.75"H (CX3300 and CX4400)
|
|
|
Refrigerant
|
R-134a
|
R-134a
|
R-134a
|
|
|
HP
|
1/8
|
1/6
|
1/6+
|
|
|
Voltage Rating
|
115V (20 amp dedicated circuit required)
|
|
|
Weight (lbs)
|
65
|
|
|
AMPS
|
4.5 (running amps)
|
4.9 (running amps)
|
9 (running amps)
|
|
|
Drainline
|
1/2” ID clear plastic tubing
|
|
Installation
|
Through-the-Wall, Partially Ducted
|
|
Thermostat
|
Advanced digital display, liquid-temperature-measuring bottle probe (retractable cable)
|
|
Temp. Delta
|
Can maintain a 55°F cellar temperature with up to 85°F condenser air intake temperature
|
|
Ducting Options
|
Exhaust air can be ducted using the optional ducting kit
|
