Helix Dual 20 (minimalist wall mounted metal wine rack kit)

Helix Dual 20 wine rack below:​
Product Overview

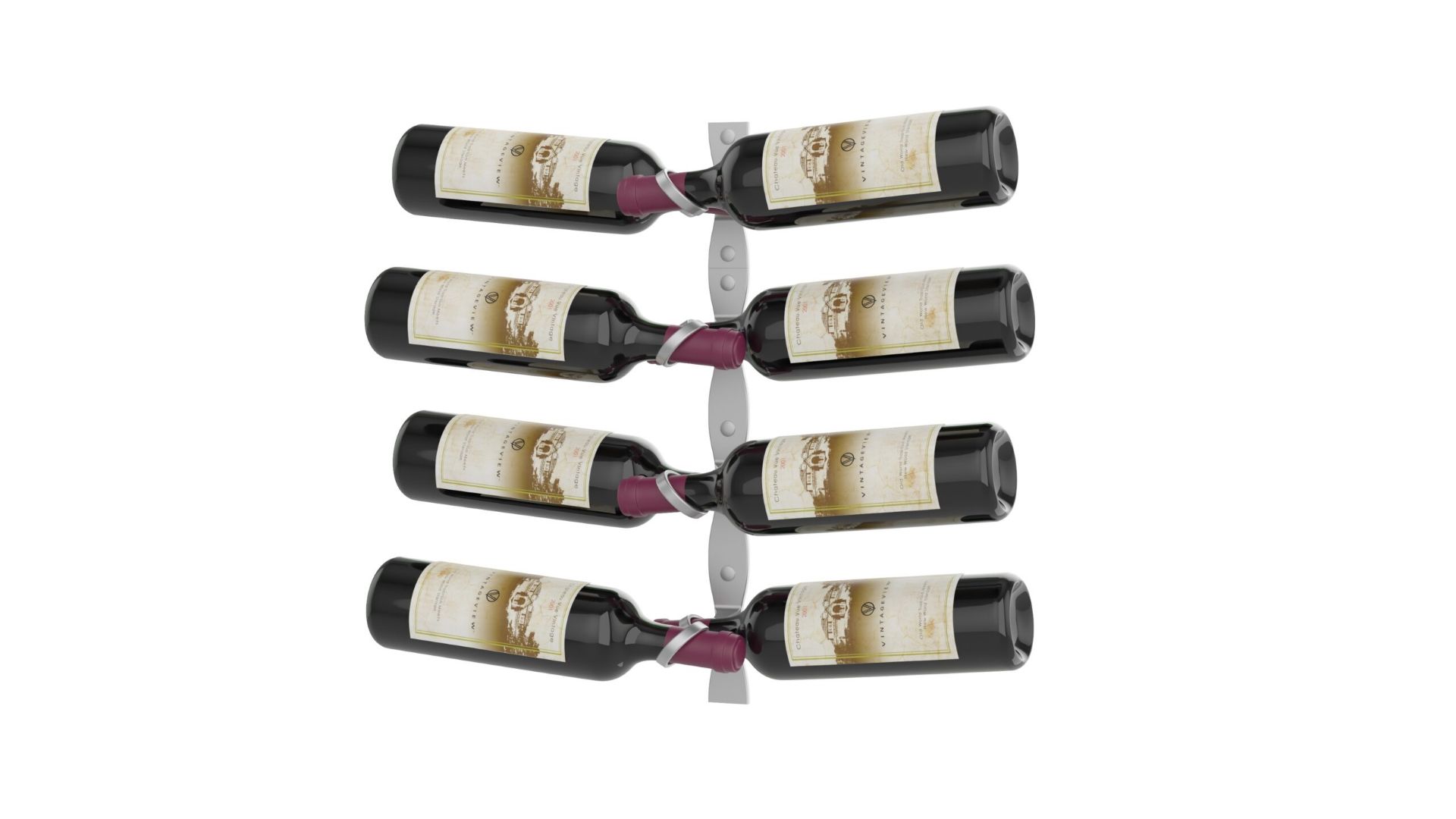

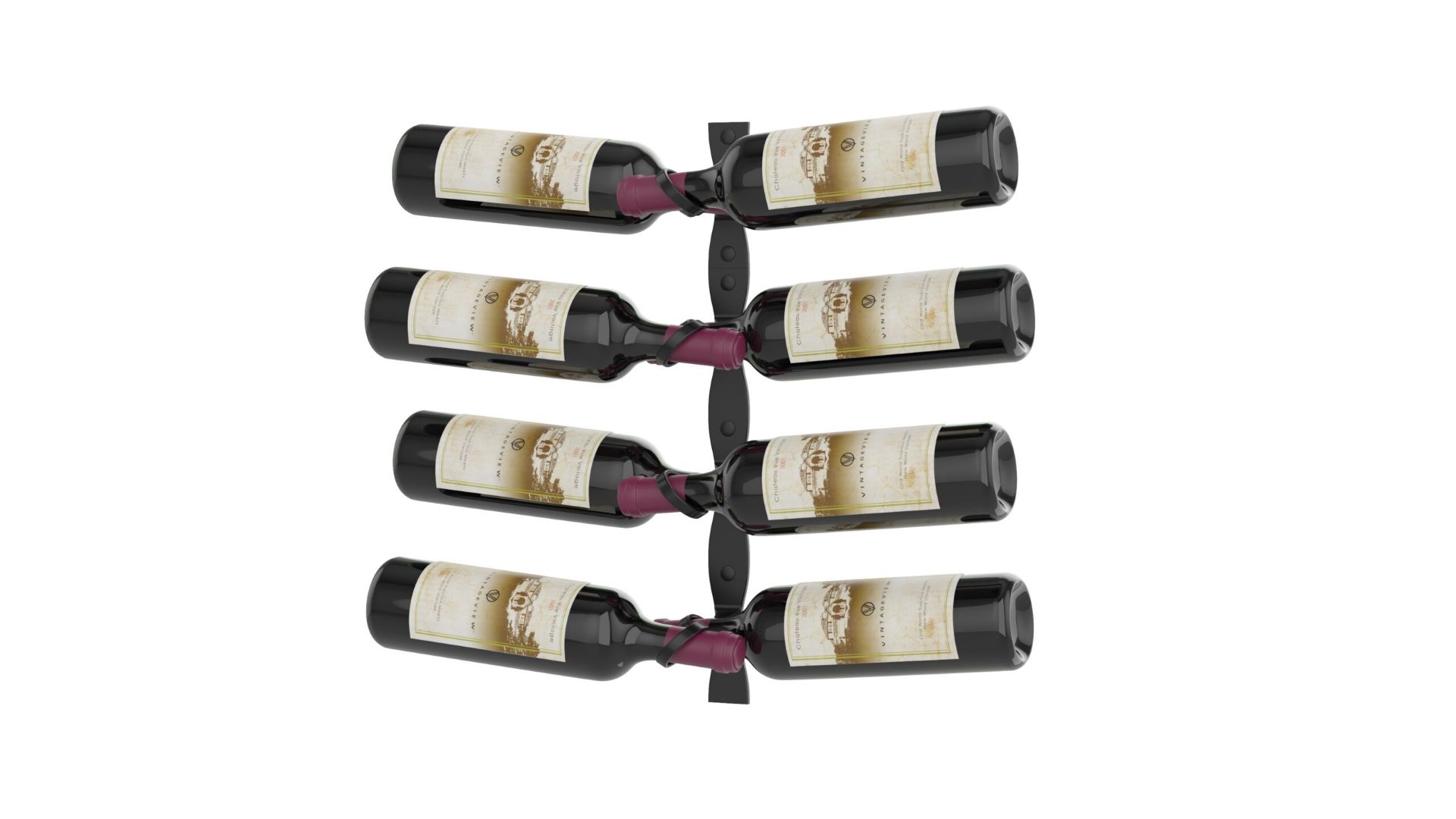

The Helix Dual 20 (R Series by VintageView) is a two-bottle depth wine rack kit that holds up to eight standard or Champagne bottles on a wall or post display. It features a wall-mounted design with curved styling, and the kit maintains a consistent bottle depth pattern when stacked vertically. It is suitable for small wine storage above wet bars or larger commercial and residential wine cellar displays, and is available in three finishes.

Dimensions & Capacity
  - Dimensions (with bottles): H: 20” (60cm) x W: 21” (53.5cm) x D: 5-1/4” (13.5cm)
  - Capacity: Holds (6) 750ml bottles, label-forward (or up to 8 standard/Champagne bottles depending on configuration)

Helix Wine Rack Spacing Chart
  - Helix Single Depth (750ml / 1.5L):
      - From Obstruction (neck): 3” (8cm) / 3.5” (9cm - for Champagne)
      - From Obstruction (base): 10” (25.5cm) / 12” (30.5cm)
      - Overall Width (from centerline): 13” (33cm) / 15” (38cm)
  - Helix Double Depth (750ml / 1.5L):
      - From Obstruction (neck): 10” (25.5cm) / 12” (30.5cm)
      - From Obstruction (base): 10” (25.5cm) / 12” (30.5cm)
      - Overall Width (from centerline): 21” (53.5cm) / 23” (58.5cm)

Note: For 750ml bottles 13” or taller, and 1.5L bottles 15” or taller, subtract 2” from the bottle height to calculate the minimum obstruction from the bottle base.
