Split Ceiling Mounted, Wine Guardian CS050 Wine Cellar Cooling Unit

The CS050 Ceiling Mounted Wine Cooling System is a ductless split wine temperature control unit designed specifically for wine wall projects
SKU: WG CS050
*
$11,726.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

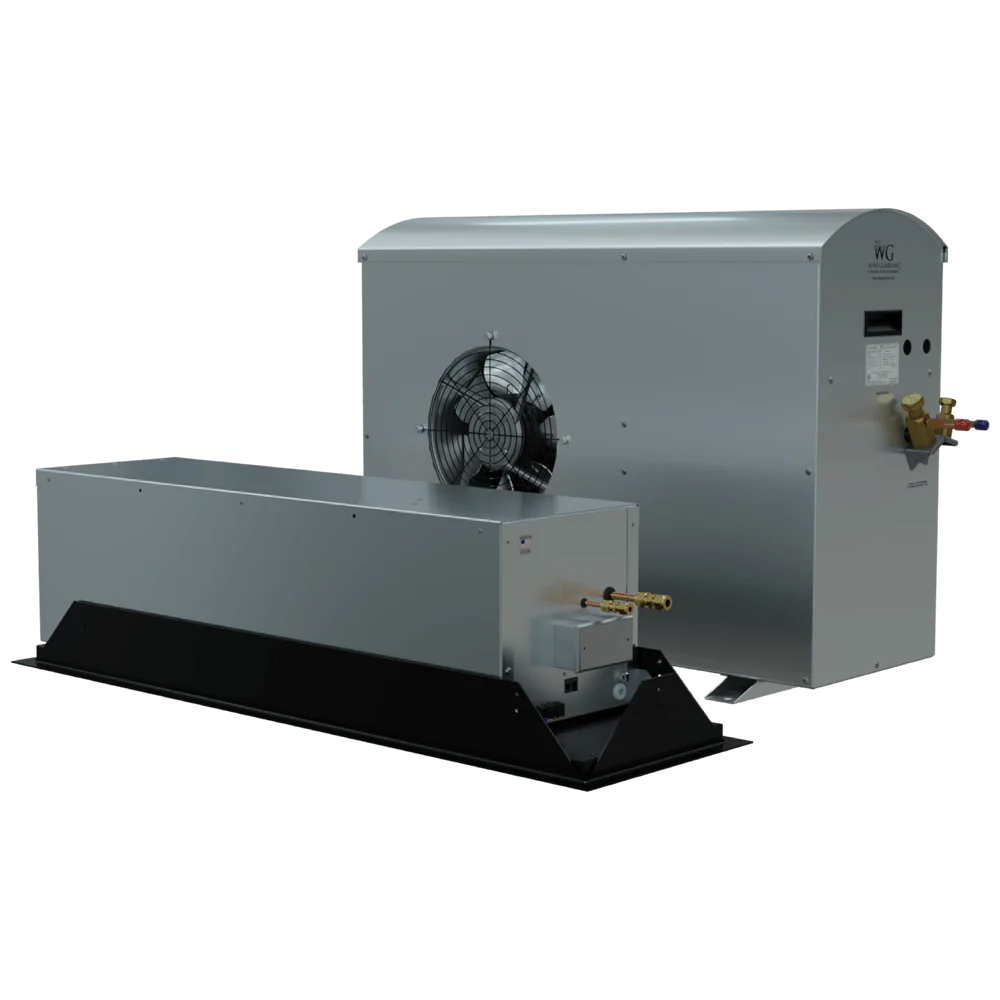

The CS050 Ceiling Mounted Wine Cooling System is a ductless split wine temperature control unit designed specifically for wine wall projects complete with outdoor condensing unit, low ambient protection and controls.

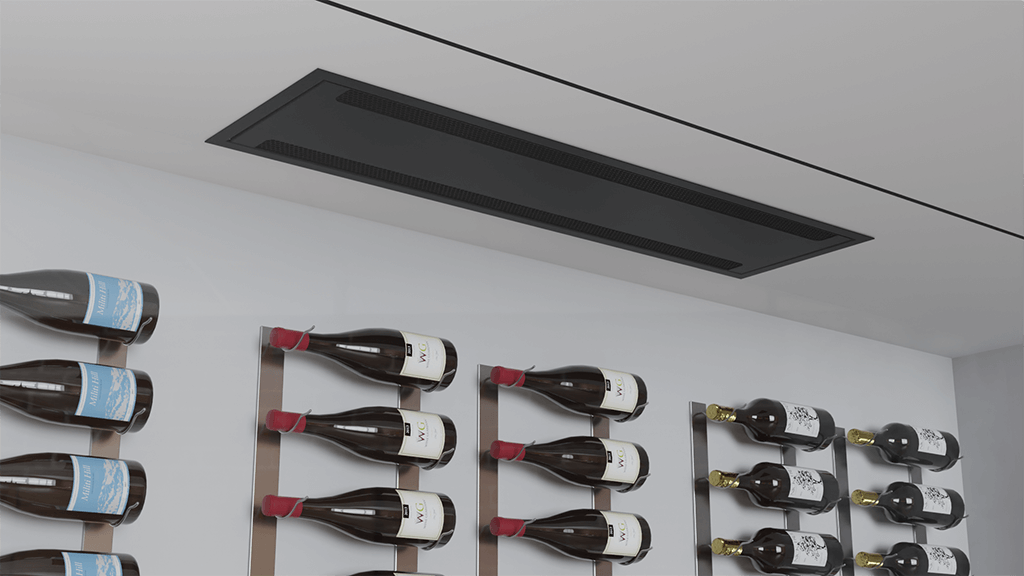

It’s grille is designed to integrate completely flush with the ceiling ensuring no bulky equipment is visible in the wine wall. This system can cool wine walls down to both long-term storage temperatures and serving temperatures. The maximum capacity for this system is 4,300 BTU/H.

Wine Guardian CS050 - ceiling mount spilt system for cellars up to roughly 1,500 cubic feet.

 Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.



Additional Information

Wine Guardian ceiling mount split cooling system offers a low profile solution for ceiling mount applications.  Installed in 12” or 16” joist spacing with as low as 10” joist height. Heavily insulated units are both quiet and energy efficient. Operating as low as 53 DBA.

The ceiling mount cooling units are an ideal option when traditional wall mount is not an option or not desired.

 Electric heater option if the ceiling above wine cellar is a colder space.

Aluminum construction to be lightweight and corrosion resistant.

Easy to remove and clean condensate pan.

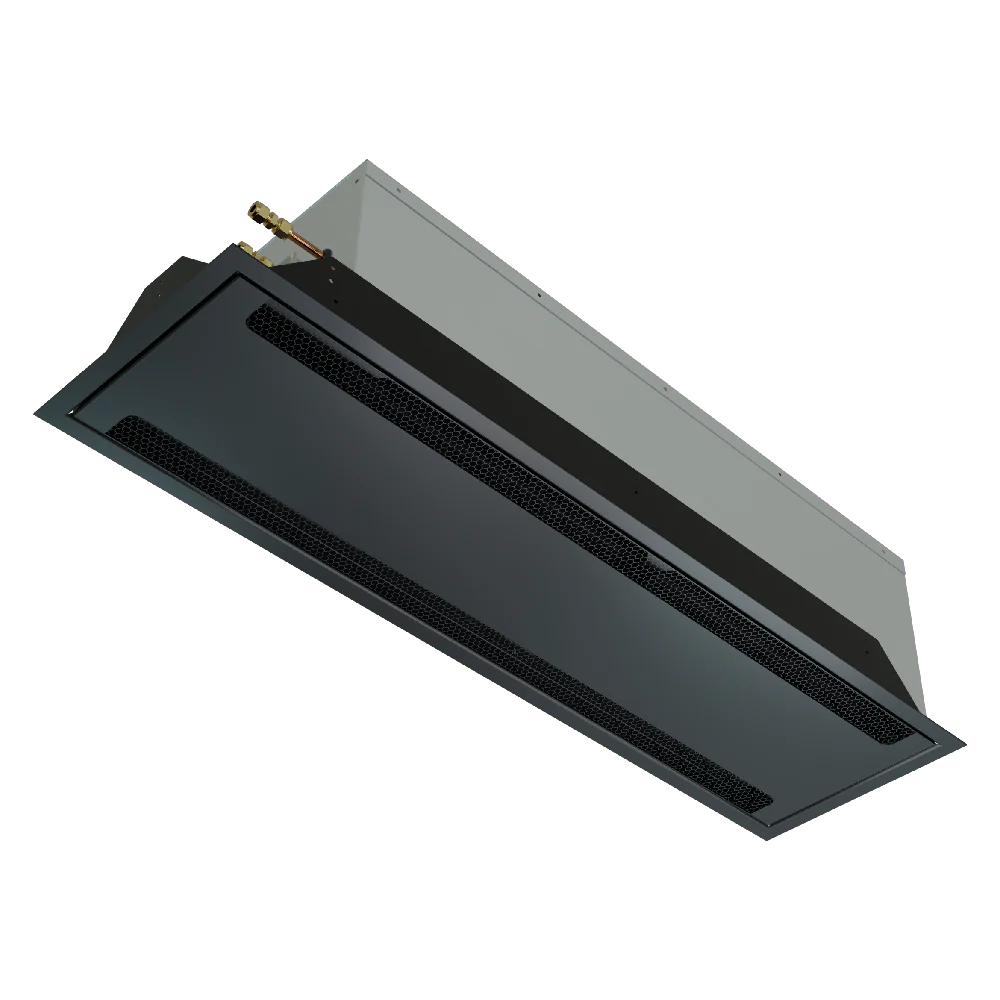

Low profile Diffuser (grill) can be painted to match ceiling - diffuser roughly 3" exposed in cellar.

Quality Wine Guardian parts and controller.

Ease of installation with mounting hooks for one person installation.



Technical Specs

Model

CS050 (Wine Wall)

Capacity

1000- 4050 BTU

BTU Max

3645

BTU min

1000

Volume

250 – 2200 ft³

Volume max

2200

Volume min

250

Length

44.19" (evaporator)
34" (condenser)

Width

12.44" (evaporator)
12.3" (condenser)

Electrical

115/1/60
208-230/1/60 (condenser)

Line Frequency

60 Hz

Height

11.43" (evaporator)
26" (condenser)

Weight

43 lbs
75 lbs (condenser)

Ductless/Ducted

Ductless

The CS050 Ceiling Mounted Wine Cooling System is a ductless split wine temperature control unit designed specifically for wine wall projects complete with outdoor condensing unit, low ambient protection and controls.

It’s grille is designed to integrate completely flush with the ceiling ensuring no bulky equipment is visible in the wine wall. This system can cool wine walls down to both long-term storage temperatures and serving temperatures. The maximum capacity for this system is 4,300 BTU/H.

Wine Guardian CS050 - ceiling mount spilt system for cellars up to roughly 1,500 cubic feet.

 Although the cooling units are rated for various size rooms, the thermal load may require a larger sized cooling unit.  Thermal load may be affected by glass in the cellar, room positioning or other factors.



Additional Information

Wine Guardian ceiling mount split cooling system offers a low profile solution for ceiling mount applications.  Installed in 12” or 16” joist spacing with as low as 10” joist height. Heavily insulated units are both quiet and energy efficient. Operating as low as 53 DBA.

The ceiling mount cooling units are an ideal option when traditional wall mount is not an option or not desired.

 Electric heater option if the ceiling above wine cellar is a colder space.

Aluminum construction to be lightweight and corrosion resistant.

Easy to remove and clean condensate pan.

Low profile Diffuser (grill) can be painted to match ceiling - diffuser roughly 3" exposed in cellar.

Quality Wine Guardian parts and controller.

Ease of installation with mounting hooks for one person installation.



Technical Specs

Model

CS050 (Wine Wall)

Capacity

1000- 4050 BTU

BTU Max

3645

BTU min

1000

Volume

250 – 2200 ft³

Volume max

2200

Volume min

250

Length

44.19" (evaporator)
34" (condenser)

Width

12.44" (evaporator)
12.3" (condenser)

Electrical

115/1/60
208-230/1/60 (condenser)

Line Frequency

60 Hz

Height

11.43" (evaporator)
26" (condenser)

Weight

43 lbs
75 lbs (condenser)

Ductless/Ducted

Ductless
