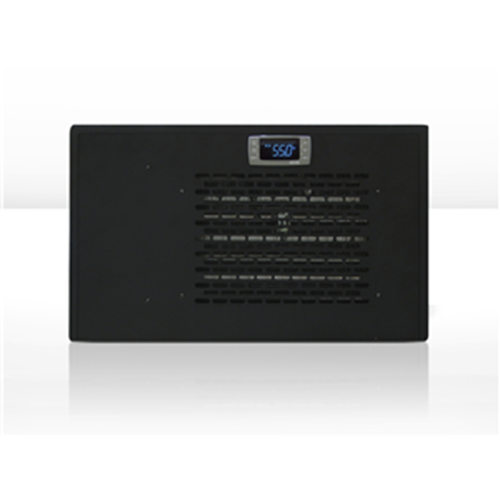

Wine-Mate 2500CD Wine Cellar Cooling System by Vinotemp is a self-contained, compact cooling system designed to provide a stable climate for wine cabinets and properly insulated small cellars.
Key Technical Specifications
Using patent-pending technology to manage both temperature and humidity, the system features:
- Cooling Capacity: Up to 200 cubic feet (approx. 612–800 wine bottles).
- Performance: 2500 BTU/h.
- Dimensions & Weight: 18” W x 16.5” D x 10.5” H; 60 lbs.
- Electrical: 115V / 60 Hz / 5A.
- Temperature Range: Adjustable between 50°F and 65°F.
- Humidity Range: Maintains stable relative humidity between 50% and 75% RH.
- Refrigerant: Eco-friendly R134a.
Operational Features

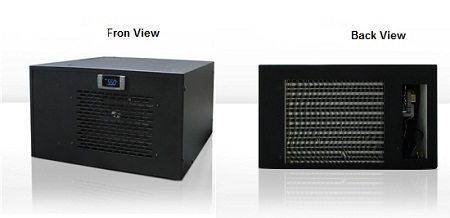

- Optimized Airflow: Bottom cold air discharge gently cools the cabinet, while multiple configurations allow for top, side, or rear hot air exhaust.
- Digital Interface: Includes an LED display with an electronic thermostat, manual defrost function, and a built-in safety alarm for temperature fluctuations.
- Quiet Operation: Acoustic and thermal insulation dampens noise levels to approximately 52 dBA.
- Maintenance: Features a protective grill designed for dust deterrence; please note that adding extra air filters is not recommended as it may restrict airflow.

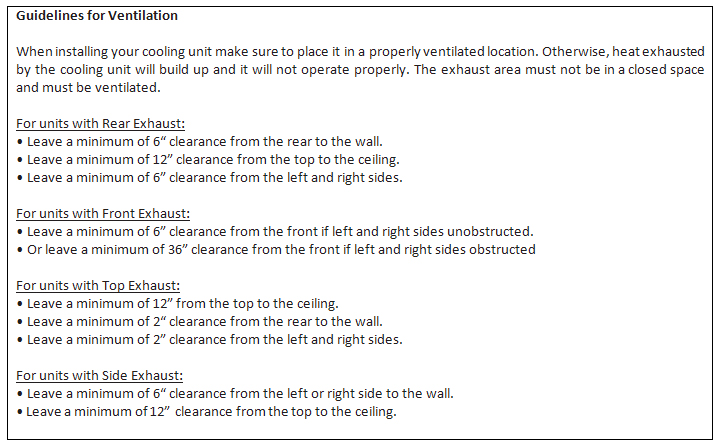

Installation Requirements
To ensure optimal performance and prevent overheating:
- Venting: The exhaust area must be a well-ventilated, open space.
- Ambient Temperature: The exhaust environment must remain between 50°F and 95°F.
- Clearance: Standard rear exhaust setups require 6 inches of clearance from the rear wall and sides, and 12 inches from the ceiling.
For existing units, troubleshooting issues like frost buildup often indicates a faulty door seal gasket or a failing defrost sensor.
